Name | Version: D1630 Frequency Shifted Delay 1.0.3
Author: altarofwisdom
Device Type: Audio Effect

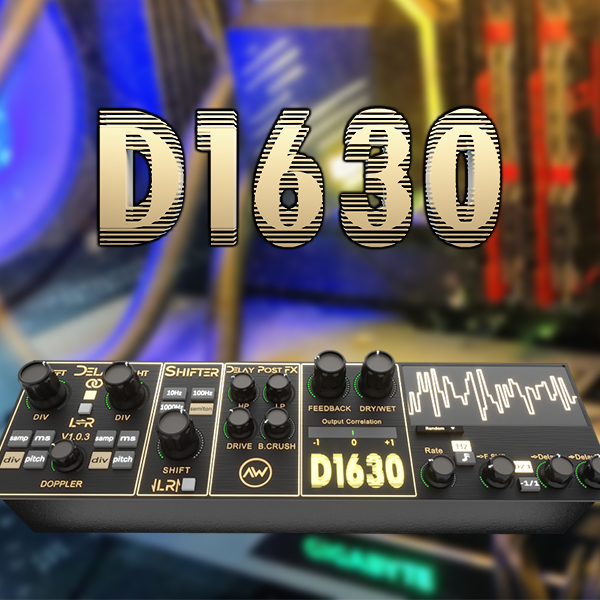

Description: The D1630 M4L device is the hidden sibling of the venerable Moog 1603 from 1974 known as well as the "Bode Shifter" and a dub delay, with a twist of FM and FX added by my curious brain and because I know everyone likes FM !

Here are the features of this device:

- dual delay (split/link), with delay lines in samples/ms/time division/pitch freq (for Karplus Strong synthesis)

- regular or ping pong mode

- adjustable "dub doppler effect" for delay pitch modulation

- frequency (not pitch) shifter from 0 to 1000Hz up and down

- possibility to invert frequency shift between left and right channel

- configurable feedback (up to 200 %)

- Delay processing:  Low Pass, High Pass, Smear, bitcrush and overdrive to further sculpt the delay (before feedback, allowing for dramatic feedback loops, beware, beware ;-))


- audio rate LFO (from 0.01HZ to 1000Hz) modulating the two delays separately and the frequency shifter (high rate inducing FM effects on the frequency shifter), several  shapes (sine, saw up, saw down, square, triangle, S&H), + smooth, jitter, phase and manual retrigger

- display of correlation level of output signal (to check possible out of phase outputs)

Check out the walkthrough video here:

https://youtu.be/lEOdpZZMkSk


If you wish to support me, get free early access to some of my devices, and discounts on all, you can join my Patreon: https://www.patreon.com/altarofwisdom

Details

Live Version Used: 11.1
Max Version Used: 8.3.0
Date Added: Jun 11 2021 14:02:51
Date Last Updated: Jan 11 2023 09:55:08
Downloads: 0
Website: https://gum.co/D1630
License: Commercial
