Device Details
Overview
| Name | Version: | pitch 1.0 |
| Author: | klirr2007 |
| Device Type: | Audio Effect |

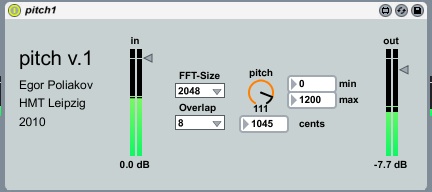

| Description: | "pitch" is a variable quality unlimited (yeah, you can pitch it to hell!!!) pitch shifting plugin. It's based on pfft~/gizmo~ objects with variable fft-size and overlap settings. You can choose between 8 different fft-windows (from 8192 to 64) and 4 overlaps (8 to 1), so you can define the quality of pitching by yourself. Remember, if you raise the fft-size the signal will be delayed by the number of fft samples (for example if you use SR of 44,1 Khz you'll have delay of 92 ms using 4096 fft-window). If you are not familiar with all the fft stuff you can read a nice manual here: http://www.scribd.com/doc/34181810/fftwindows Generally you shall use 2048 window and 4-overlap to got the cleanest pitching with smallest delay (in opposite if you need a real destruction use very small fft with 1-2 overlap). You can use both the dial (with your own min/max values) or the number box below to pitch. All values will be saved with your project! Have fun and please report any bugs! |
Details
| Live Version Used: | 8.1.4 |
| Max Version Used: | |
| Date Added: | Jul 11 2010 16:33:55 |
| Date Last Updated: | Jul 11 2010 16:34:42 |
| Downloads: | 3763 |
| ⓘ License: | Attribution |
Average Rating
(1) Log in to rate this device |
5 |
Files
| Device File: | pitch1.amxd |
Comments
Sounds exciting! Thank you
Posted on July 16 2010 by uxeexu |
Report Issue
This is the perfect pitch shifter. Truly excellent.
Posted on January 05 2012 by bolson |
Report Issue
Yes this is one of best pitch shifters and it works in Live 8 perfectly but in Live 9 just loading it on empty template is giving me 34% CPU usage when doing nothing..?? And i have 4 core system..Dev can you make it compatible with live 9 please?
Posted on March 25 2013 by maky357 |
Report Issue
