Device Details
Overview
| Name | Version: | Analog Channel EQ 1.0 |
| Author: | ksproduction |
| Device Type: | Audio Effect |

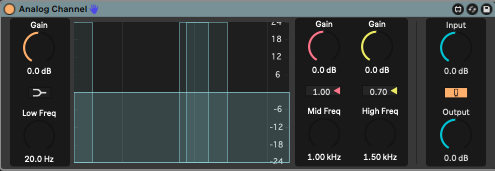

| Description: | The Analog Channel EQ is a digital audio effect designed to replicate the tonal shaping and behavior of a traditional analog channel equalizer, typically found on analog mixing consoles. This effect allows you to sculpt the sound by adjusting low, mid, and high frequency content with a clean and intuitive interface. This EQ is ideal for shaping individual sounds or buses. Use the low band to clean up sub frequencies, the mid band to fix muddiness or add presence, and the high band to add clarity. Always level match the input and output to ensure honest comparisons when toggling the effect on and off. CONTROLS: Low Frequency Section (Left) Gain Knob: Boosts or cuts the low end of the signal. Frequency Selector: Set at 20 Hz, it targets the sub-bass range — useful for removing low-end rumble or enhancing deep bass. Toggle Switch: Likely enables a high-pass filter, which removes all frequencies below the selected threshold. Visual Display (Center) Shows the frequency response curve in real time. Lets you visually monitor how much you're boosting or cutting across the spectrum. Mid and High Frequency Section (Middle-Right) Mid Band: Gain: Controls how much you boost or cut the midrange (around 1.00 kHz). Q (0.70): Determines the width of the adjustment — a lower value affects a broader range of frequencies. High Band: Gain: Boosts or cuts the upper frequencies, with the center set at 1.50 kHz — slightly below typical high-end “air” ranges. Input & Output (Far Right) Input Knob: Adjusts the signal level going into the EQ. Output Knob: Sets the volume coming out after EQ is applied. Toggle Button: A bypass switch or a saturation/clipping control to mimic analog warmth. |
Details
| Live Version Used: | 12.0.5 |
| Max Version Used: | 8.6.2 |
| Date Added: | Jun 12 2025 12:28:29 |
| Date Last Updated: | Jun 12 2025 12:28:49 |
| Downloads: | 0 |
| Website: | https://ksproduction.shop/products/analog-channel-eq |
| ⓘ License: | Commercial |
Average Rating
Log in to rate this device |
-n/a- |
