Device Details


Overview

Name | Version: HarmFarm 1.0
Author: WalrusFlower
Device Type: Audio Effect

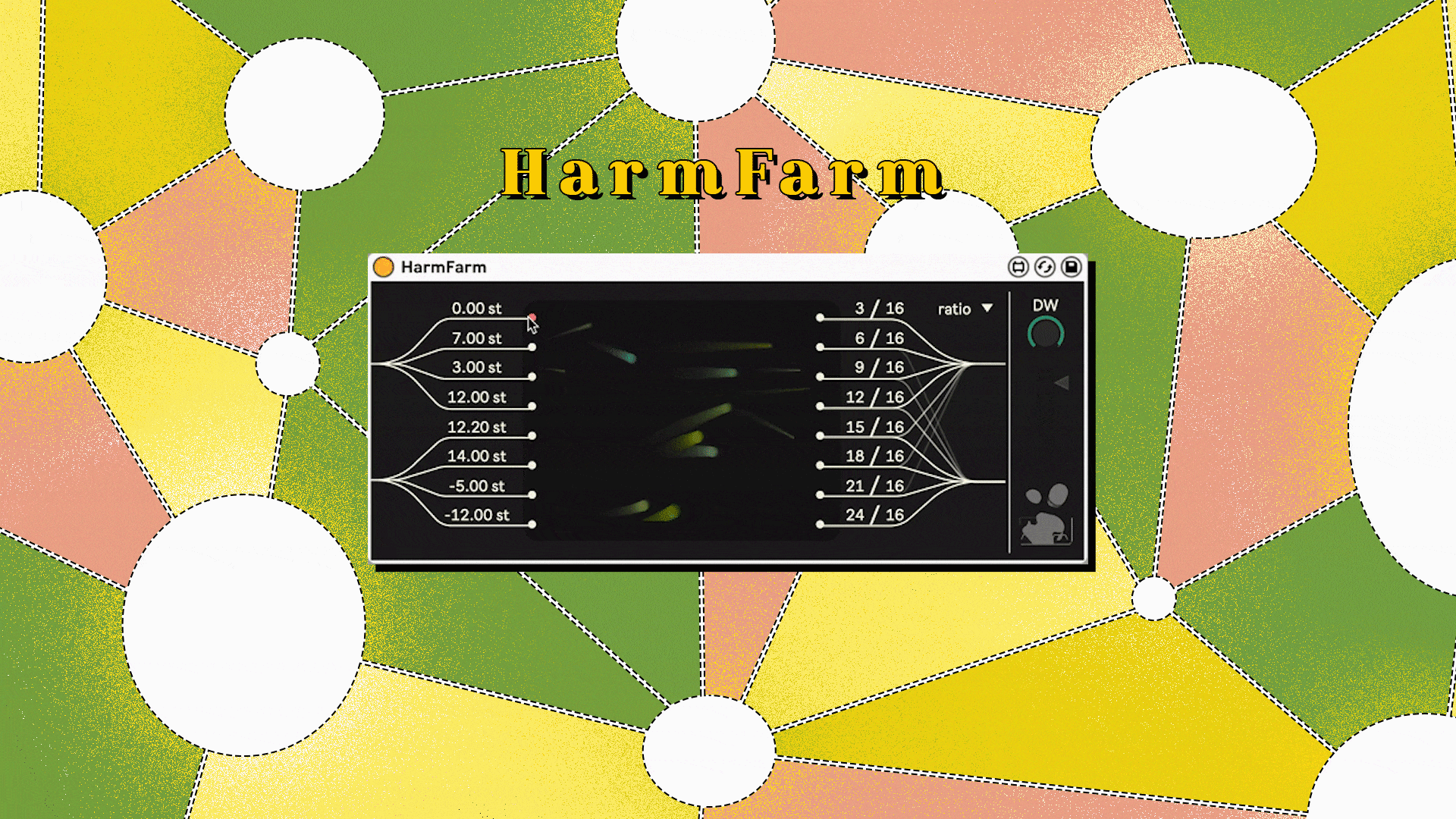

Description: HarmFarm is a max4live designed and built by Aval.

It's a multi tap delay matrix, where each possible line (up to 8) is integrated a high quality pitchshifter. The stereo signal is spread per channel in other 4 different pitchshifters, and through a patch bay you can connect the 8 channels inputs to different 8 outputs, or connect a single channel to multiple outputs, provided with delays which can be set in 3 different modes: ratio for time synced fraction in order to obtain crazy rhythm and polyrhythmic patterns; free to get unsynced delay times; and for last sync, to get repetitions of the first delay line. With this m4l you can shift and delay sounds, creating clouds of harmonization, or adding some spice to drum patterns and toppers loops. With the device you'll find 4 presets ideas to start with.

----------------------------------------------------
PatchBay to connect I/O simply by click&drag between two points. In order to delete a connection press "option" or "alt" and click the line.

8 PitchShifters with -24st minimum and +24st maximum.

8 Delay lines with 3 differents mode:

Ratio allows you to enter fractions of time synced to bpm.

Free allows you to enter absolute times in milliseconds.

Sync creates, by using the first delay line as a starting point, delay times multiple of the first.

DW: amount of dry or wet signal.

----------------------------------------------------

Video demo: https://youtu.be/lcTbQ6kg2i4

Details

Live Version Used: 11.0.12
Max Version Used: 8.1.5
Date Added: May 04 2022 17:05:09
Date Last Updated: May 04 2022 17:07:21
Downloads: 0
Website: https://avalaudio.gumroad.com/l/harmfarm
License: Commercial
Average Rating

Log in to rate this device

-n/a-



Comments

An absolute gem of a device, only issue I'm having is that the DW control is invisible for me (Live 11.1). It works, but I can't see the value when I turn it (there is just a blank space where the "knob" should be). Lovely work!
Thank you! Much appreciated, I'll take a look on this bug and send the fixed device via mail asap :)
Brilliant, all fixed. Thanks for updating that so quickly! Cheers.
看起来很不错
