Overview

Name | Version: FrankShotFreddy 2.1.8
Author: Monetus
Device Type: Instrument

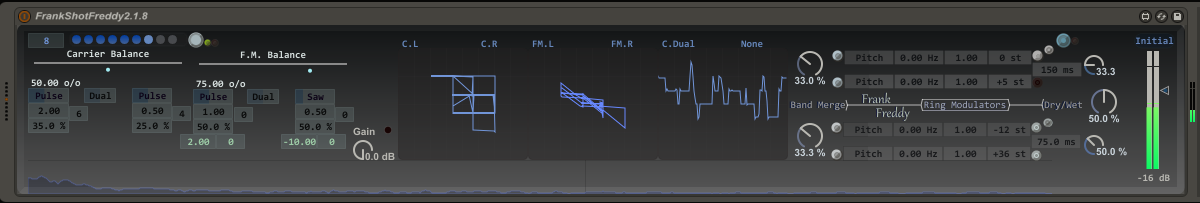

Description: This is the poly build of a complicated monophonic synth I had been working on. Here is the overview

-Two FM oscillators with balance
-Two Carrier oscillators with balance
--6 choices of wave-type for each oscillator
--Rough and fine rate control
---Duty cycle modulation for Ramp and Pulse
-Homemade curve ADSR
-Signal routing between three scopes and both axes.
-Biquad filter nested in Poly with a synchronizable cutoff ADSR
-Two Single-sideband ring modulators (hertz shifters)
--Synchronizable glide rate
--Togglable fixed/synchronized starting point
---Retrigger control.


Have some more features I have yet to implement but, I figured I would go ahead and get it up here.

Questions are welcome and appreciated.
- Yes I am aware this works only on one instance for now. When Cycling74 support is finished, I will upload that feature

--Change Log--
(2.1) Should have fixed initialization on loading and with a button. Save a preset before and use it to re-initialize after a voice change until I implement a mechanism for making it hands free
(2.1.5) new* polyphonic biquad based filter with cutoff envelope and filtergraph UI - Reconstructed the original envelope logic as I am fairly sure it didn't hold water. Organized UI scripting.
(2.1.8.) The namesakes of the synth are here. Frank and Freddy are based off of Max's freqshift~ object. Everything has been changed to signal rate to avoid clicks. Voice changes no longer reset anything, you don't have to use the preset object for that. I streamlined numerous features as well, for the observer.

Details

Live Version Used: 9.1.6
Max Version Used: 6.1.9
Date Added: Oct 26 2014 17:42:04
Date Last Updated: Nov 17 2014 01:18:48
Downloads: 1345
ⓘ License: AttributionNonCommercialShareAlike
Average Rating

Log in to rate this device

 -n/a-

Files

Device File: FrankShotFreddy2.1.5.amxd



Comments

This should be working now. All feedback is appreciated.
Posted on October 26 2014 by Monetus | Report Issue
Tested it on my machine but the graphics appear all broken and there is no sound, looks interesting though.
Posted on October 26 2014 by Hektagon | Report Issue
thanks bunches for feedback, OS? I made on windows but am going to debug on mac as well
Posted on October 26 2014 by Monetus | Report Issue
There is not much initialization outside of a preset (2.0) and It needs complete reinitialization upon changing the voice number. I have been working through a pattr system and will fix that soon
Posted on October 26 2014 by Monetus | Report Issue
Hey I can't get any sound out of this either. When I tested the beta you linked to me I got a few seconds of sound, then it died. Strange!
Posted on October 29 2014 by happytosh | Report Issue
You're sure the envelope was set? It should self-initialize now, but I think I will try another method or two for that. I am going to upload a debug version of this device along with the mono version I am building up to. Hopefully the debug build will let you isolate why the sound is doing that, but feel free to post anything you think might be helpful.
Posted on October 29 2014 by Monetus | Report Issue
Still no sound...
Should make sound right away, no?
Posted on October 30 2014 by happytosh | Report Issue
I suspect the problems lie in the old envelope. There is a new one, and it should be initialized right off the bat. STILL VERY BETA sorry please help debug, this thing is awesome
Posted on November 02 2014 by Monetus | Report Issue
yes i really want to test this thing!
I'll see what I can find when I have time.
Posted on November 02 2014 by happytosh | Report Issue
I think you need to at least lock+freeze and reupload
Posted on November 02 2014 by happytosh | Report Issue
damn my sleep deprived brain, should have just waited till the morning. Re-uploaded. Will work on the many needed features for another upload tonight
Posted on November 02 2014 by Monetus | Report Issue
thanks again
Posted on November 02 2014 by Monetus | Report Issue
the version i just downloaded is unlocked and unfrozen :/

but do get that much needed sleep man!
Posted on November 02 2014 by happytosh | Report Issue
no, sorry my mistake... had the old one still. works now :D
Posted on November 02 2014 by happytosh | Report Issue
Post if you use this and I will try to help promote what you make.
Posted on November 17 2014 by Monetus | Report Issue
absolutly stuning!
Posted on November 23 2014 by EJWycoff | Report Issue
