Max for Live

Device Details


Overview

Name | Version: Midi Bang v1.2 - midi note trigger 1.2
Author: francois
Device Type: MIDI Effect
Description: Midi Bang v1.2 (Upraded version of Midi Bang v1.1)

Midi note triggered with an audio signal

This device allows to trig a midi note with audio signal in (almost) real time (2ms latency). You can also link the velocity of the sent midi note with the level of the audio trigger.

To use it :

- Put one envelope follower (audio device) on the audio track you want to use to trig the midi note (put 30dB gain)
- Put the Midi Bang device on midi track and map the envelope follower to his button.
- On the midi track, put the sample you want to be triggered (sampler, drum rack etc)

If you want to link the velocity of the midi note to the level of the triggered note : (default velocity is 100)

- Put another envelope follower (audio device) after the first one and map it on the Midi Bang velocity pot. (put 12dB gain).


Good to know :

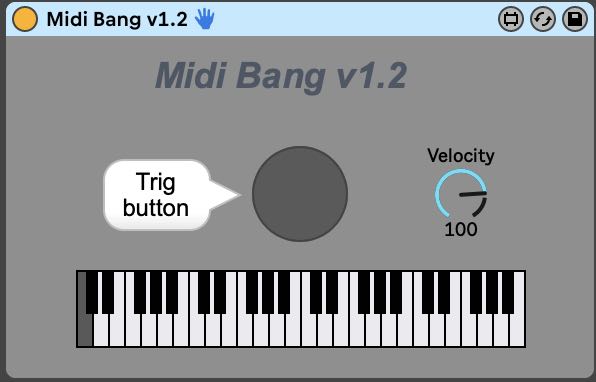

- You can choose the triggered midi note with a click on the keyboard
- The threshold required to trig the midi note is 50 so you have to adjust the gain of the first envelope follower (who control the trig).
- To control the velocity of the note you have to find the sweet spot between the gain of the second envelope follower (who control the velocity)
- If you want to reduce the latency between the audio signal and the triggered midi note you have to put the Ableton audio buffer at the minimum

(If you have some questions, suggestions let me know in a comment)

Enjoy !

Details

Live Version Used: 11.3.25
Max Version Used: 8.5.8
Date Added: May 18 2024 14:12:16
Date Last Updated: May 18 2024 14:44:37
Downloads: 206
ⓘ License: None
Average Rating

Log in to rate this device

 -n/a-

Files

Device File: Midi Bang v1.2.amxd



Comments

when i am trying to map envelope follower to the button on midi track i receive message
-mapping unsuccessful. the selected parameter doesnt support this operation
on midi track i have a wavetable
Posted on June 29 2024 by admweer | Report Issue
Resolve it. Envelope follower should be in remote mode (yellow) not mod mode(blue)
Posted on June 29 2024 by admweer | Report Issue
Salut Francois,

Je me suis inspiré de ton midi bang v1.2 pour en faire une version 16 trigger.
Merci pour ton inspiration :)

https://maxforlive.com/library/device/11357/16notestrigger

Posted on October 30 2024 by an21 | Report Issue
Hello an21 ! Hé bé bien joué, je vais le télécharger mais ça m'a l'air d'être super fonctionnel !
Merci à toi pour le device et pour le petit mot !
Posted on November 16 2024 by francois | Report Issue
